Product 4 of 4

KN-ABSFT

Product number: 12901

Cable 12V-3-pin to 12V ABS plug

▪ up to max. 40km/h applicable!
▪ length 4m

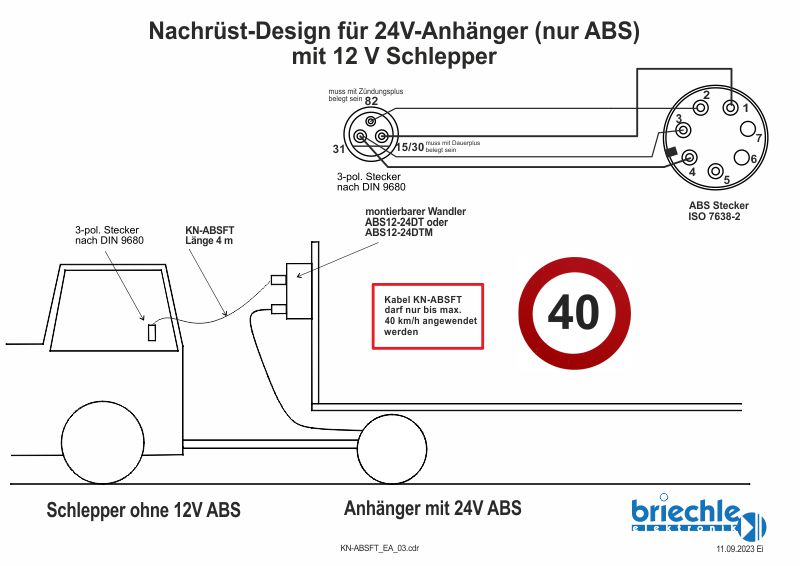

Cable for the connection of the converters ABS 12-24DT, -DTM, -PS, -PSM and TCU-FT-DD with a 3 pin tractor universal socket according to DIN 9680.

***Attention!*** Legal maximum speed 40km/h! Please follow the regulations of your country.

  • Supplies the EBS of a trailer when subsequently limited to 40km/h
  • For the supply of any ABS 12-24xx converter with a 12V ISO 7638-2 input socket
  • No ABS upgrade of 40km/h tractors required
Connection input
Plug 3 Pin DIN 9680
Connection output
Plug ABS 5 pin ISO 7638-2
Cable length
4m (Cable Style: 2x4+3x1,5mm² PUR (1x1,5mm² not in use))
Mass
1.05 kg
