Description

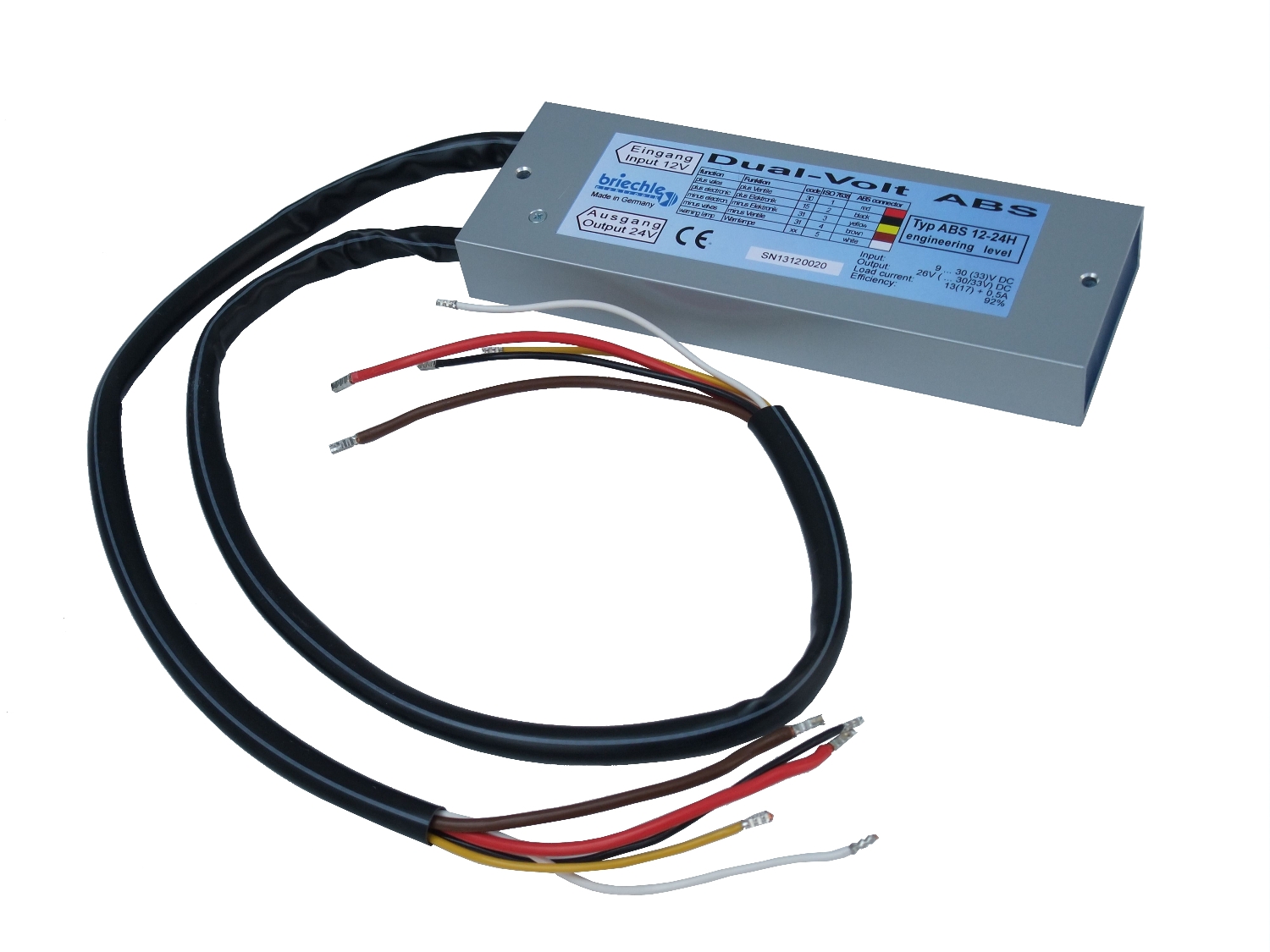

Special converter for the supply of 24V anti lock system out of 12V or 24V. High output power 15/20A
Features/Details
- input voltage 12V and 24V
- high power for additional functions like EBS, level control and multi systems
- compact size by high efficiency
- simple mounting by inserting into cable line (5-pole cable)
- info-module works properly
- electronical protection against reverse polarity without
- short circuit
- protection against overload
- reverse voltage proof independent from polarity
Product data
Specification
Product number: 10120
- Input voltage
- 9 ... 33V DC both lines
- Output voltage
- 27V +-5% (27 ... 32V if input above 27V)
- Output current line (term. 30)
- 0 ... 15A (20A /20% on time cycle)
- Output current line (term. 15)
- 0 ... 500mA
- Connection input
- open cable ends (4mm²/1.5mm²)
- Connection output
- open cable ends (4mm²/1.5mm²)
- Cable length input
- app. 350mm
- Cable length output
- app. 350mm
- Total efficiency
- > 92%
- Mechanical protection
- IP 6K9K (entirely sealed)
- Dimensions
- 200 x 70 x 25mm
- Mass
- app. 0,85 kg
- Approval
- E1 10R-058407
