Description

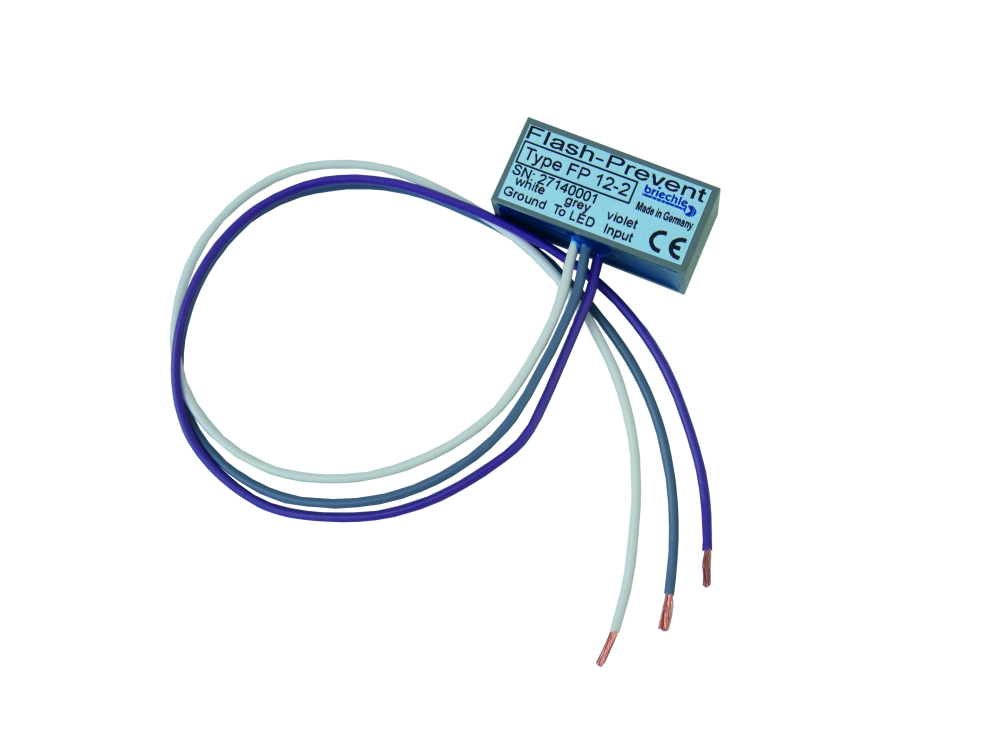

The Flash-Prevent prevents effectively the inadmissible flashing of LED lamps
caused by the vehicles pulsed cold scan ("hard" and short pulse
ab. 10ms). The failure of an LED will be monitored.
Attention! Flash-Prevent doesn't replace LED-ADAPT.
Features/Details
- effectively prevents flashing of LED lamps
- the failure detection stays in function
- easy installation due to compact dimensions
- easy installation ahead of to the LED lamps
- completes LED-ADAPT in combined monitoring
Product data
Specification
Product number: 11285
- Operation voltage
- 12V nominal
- Output current
- LED (max 0.4A)
- Connection input
- strand with open cable ends
- Load imitation
- within 0-50ms cold filament
- Cable length input
- app. 300mm
- Temperature range
- -40 … +75°C
- Mechanical protection
- IP 6K9K (entirely sealed)
- Dimensions
- 40 x 18 x 15 mm without cable outlet
- Mass
- app. 0,04 kg
- Failure monitor LEDs
- integrated
- Approval
- CE
