Description

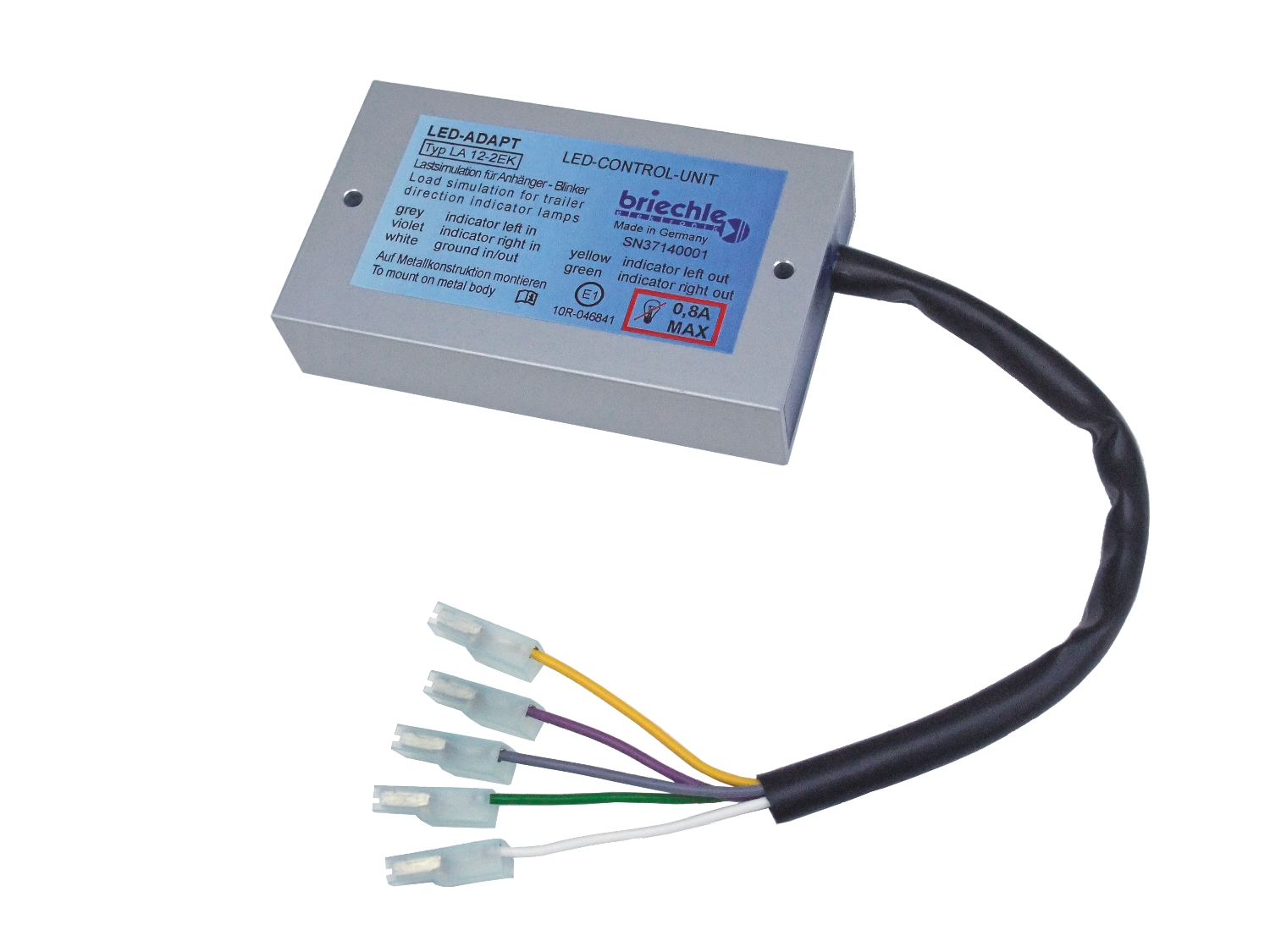

24 Volt resistor replacement load for the adaptation of light emitting diode (LED) trailer lamps at vehicles with incandescent lamp monitoring. The failure of a direction LED unit is indicated and the replacement load is turned off. LED-ADAPT must be mounted on a metal surface.
***CAUTION*** The connection of any bulb on the output is prohibited.
The over current protection may cut off not until after several minutes!
Features/Details
- singe cable version
- LED- direction indicator monitoring
- serves the direction indicators with replacement resistors
- conditionally short circuit proof (about 100 cycles)
Product data
Specification
Product number: 11216
- Operation voltage
- 24V nominal
- Output current
- direction 0.4A (Over current protection time delay 1…2000s!)
- Connection
- hose line 5 x 1mm², length 0.25m, ins. 6.3mm blade receptacle
- Load imitation
- 2x17 W (direction)
- Temperature range
- -40 ... +75°C
- Electrical protection
- overcurrent, overtemperature, reverse polarity
- Mechanical protection
- IP 6K9K (Vollverguss)
- Dimensions
- 120 x 70 x 25mm
- Mass
- app. 0,35 kg
- Failure monitor LEDs
- 20mA (direction)
- Mounting rule
- cooling plate 8dm² (aluminium sheet 1.5mm thickness) or on chassis frame
- Approval
- E1 10R-046841
