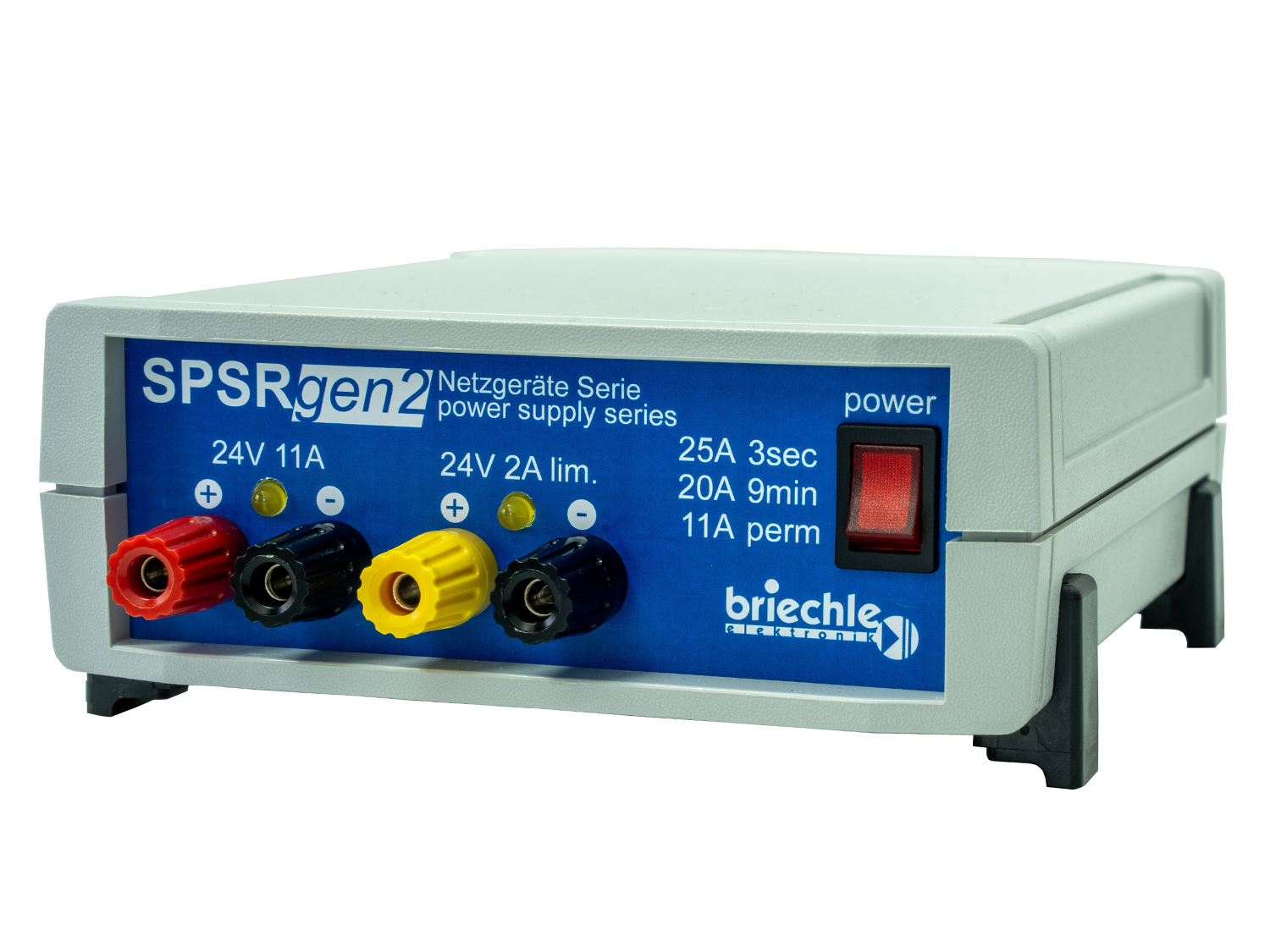

SPSR 230V-24V Gen2

SPSR 230V-24V Gen2

Product number: 10263

SPSR 230

▪ IN: 230V / OUT: 24V
▪ Input: 230V plug
▪ Output 1: 2x socket
▪ Output 2: 2x socket

Weight: 1.1 kg

"Safety-Power-Supply-Regulator", a compact security power-supply for commercial vehicle workshops

  • perfect power profile for ABS and EBS tests:
    - 25A for 3 sec
    - 20A for 9min
    - 11A permanent
  • small and light
  • internal two-chamber construction, highest safety
  • no ventilation slots, so there can be no damage caused by falling-in metal parts
  • no problems with simultaneous welding because of safety class 2 system
  • additional, current limited outlet prevents damages
  • every outlet with LED "voltage ok"
Input voltage
230V (80...264V, 47...63Hz)
Output voltage
24V each output
Output current
conduit 1: 25A/3sec, 20/A/9min, 11A/permanent ,conduit 2: limited to 2A )24V)
Connection input
230V power plug, standard CEE 7/7
Connection output
2x sockets
Connection output 2
2x sockets
Efficiency
app. 94%
Electrical protection
safety class II (double isolation), overcurrent, overtemperature
Mechanical protection
IP 5(4) dustprotected, single waterdrops without moistening
Dimensions
200 x 163 x 65mm without cable outlet
Mass
app. 1,100g
Displays
yellow LEDs light up when voltage is OK
